Supported Hardware
SenseCraft HMI supports a growing range of ePaper display devices. Below is the full compatibility overview, organized by product series.
Compatibility Table
Section titled “Compatibility Table”| Device | Display Size | Colors | Resolution |
|---|---|---|---|
| reTerminal E1001 | 7.5” | Monochrome (4-level grayscale) | 800×480 |
| reTerminal E1002 | 7.3” | Full color (Spectra 6) | 800×480 |
| reTerminal E1003 | 10.3” | Monochrome (16-level grayscale) | 1404×1872 |
| reTerminal E1004 | 13.3” | Full color (Spectra 6) | 1200×1600 |
| XIAO ePaper DIY Kit EE02 | 13.3” | Full color (Spectra 6) | 1200×1600 |
| XIAO ePaper DIY Kit EE03 | 10.3” | Monochrome (16-level grayscale) | 1404×1872 |
| XIAO ePaper DIY Kit EE04 | 1.54”–7.5” | Monochrome / Color | Varies by panel |
| XIAO ePaper DIY Kit EE05 | 1.54”–7.5” | Monochrome / Color | Varies by panel |
| TRMNL 7.5” (OG) DIY Kit | 7.5” | Monochrome (4-level grayscale) | 800×480 |
reTerminal E1001
Section titled “reTerminal E1001”
Introduction
Section titled “Introduction”The reTerminal E1001 features a 7.5-inch 800×480 ePaper display with 4-level grayscale. It offers crisp, highly legible visuals and minimal power consumption, making it ideal for applications where battery life is critical.
Key Features
Section titled “Key Features”- 7.5-inch monochrome ePaper display with 4-level grayscale
- 800×480 resolution
- Ultra-low power consumption for extended battery life
- Perfect for text-heavy applications like calendars, to-do lists, and information displays

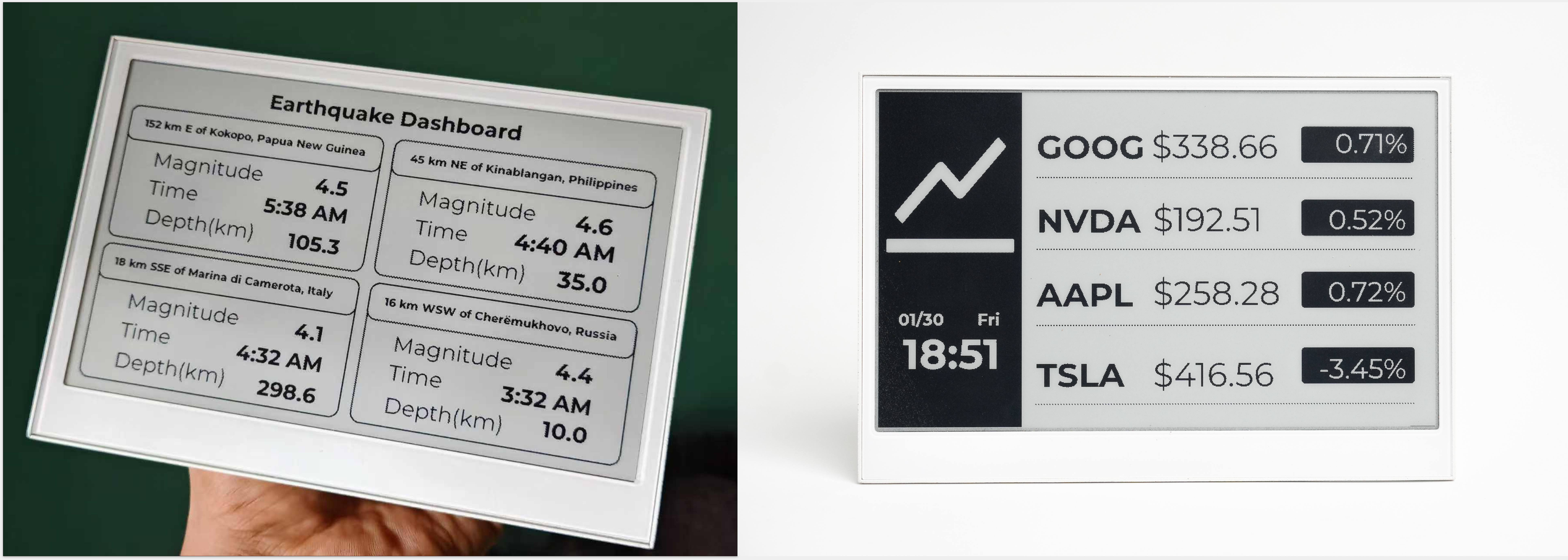

Community Templates
Section titled “Community Templates”
reTerminal E1002
Section titled “reTerminal E1002”
Introduction
Section titled “Introduction”The reTerminal E1002 features a 7.3-inch ACeP full-color ePaper display. It combines ultra-low power consumption with vibrant multi-color visuals, making it ideal for aesthetically engaging applications that require clear visual distinction.
Key Features
Section titled “Key Features”- 7.3-inch full-color ePaper display with ACeP technology
- 800×480 resolution
- Rich color representation while maintaining low power consumption
- Perfect for gallery displays, colorful dashboards, and visually oriented applications
Community Templates
Section titled “Community Templates”
reTerminal E1003
Section titled “reTerminal E1003”
Introduction
Section titled “Introduction”The reTerminal E1003 is a 10.3-inch (1404×1872) 16-level grayscale ePaper display powered by an ESP32-S3. It natively supports SenseCraft HMI (no-code)—with touch interaction enabled in v1.1.2—while remaining compatible with Arduino and PlatformIO. Future updates will include open-source touch libraries and ESPHome driver support.
Key Features
Section titled “Key Features”- 10.3-inch monochrome ePaper display with touch interaction support on HMI firmware v1.1.2
- 16-level grayscale with 1404×1872 high resolution
- Up to 6-month battery life with ultra-low power operation

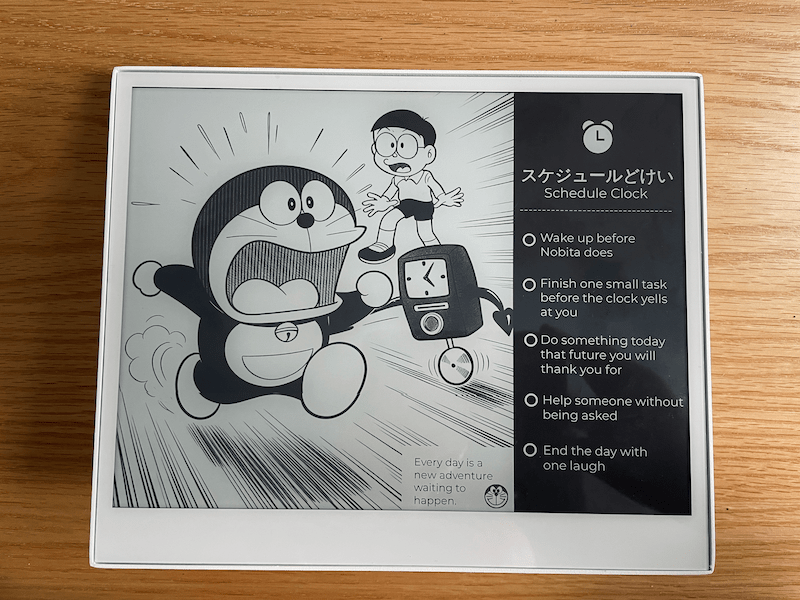

Community Templates
Section titled “Community Templates”
reTerminal E1004
Section titled “reTerminal E1004”
Introduction
Section titled “Introduction”The reTerminal E1004 features a 13.3-inch full-color ePaper display powered by an ESP32-S3. It supports SenseCraft HMI for no-code dashboarding and image uploads, with full compatibility for Home Assistant, Arduino, and ESP-IDF development.
Key Features
Section titled “Key Features”- 13.3-inch full-color ePaper display
- Up to 6-month battery life for always-on scenarios
- Compatible with Home Assistant, Arduino, and ESP-IDF

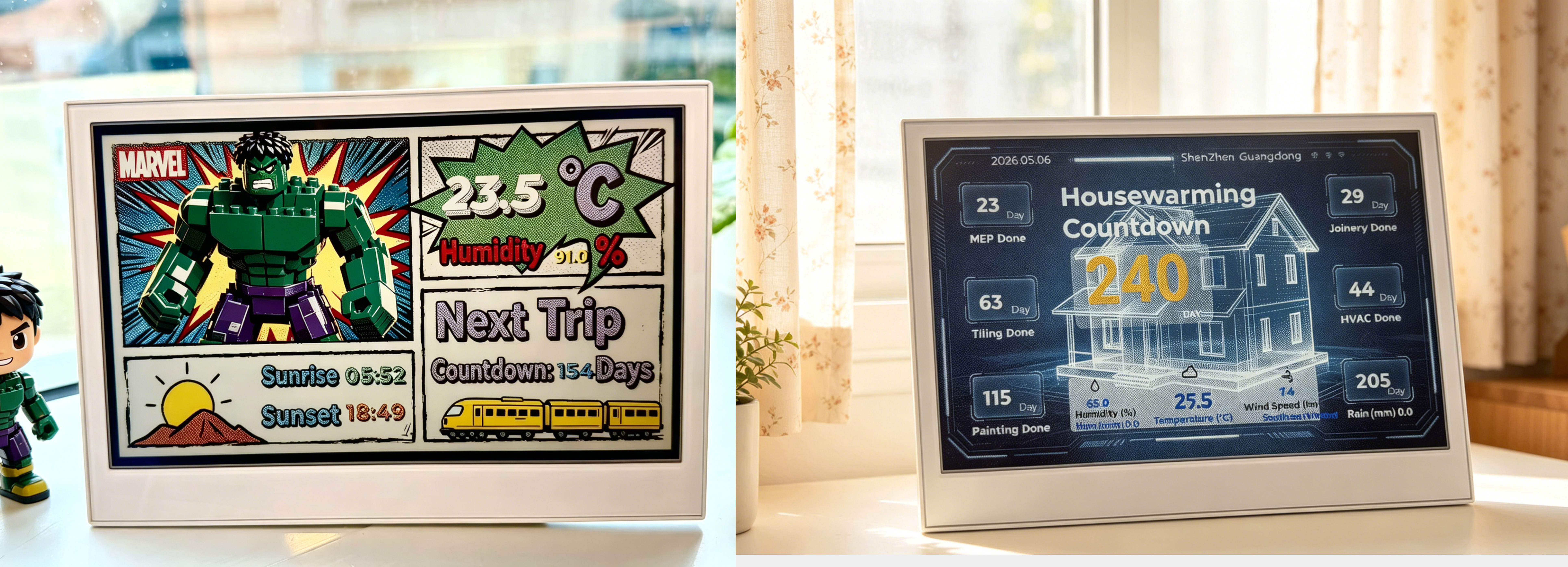

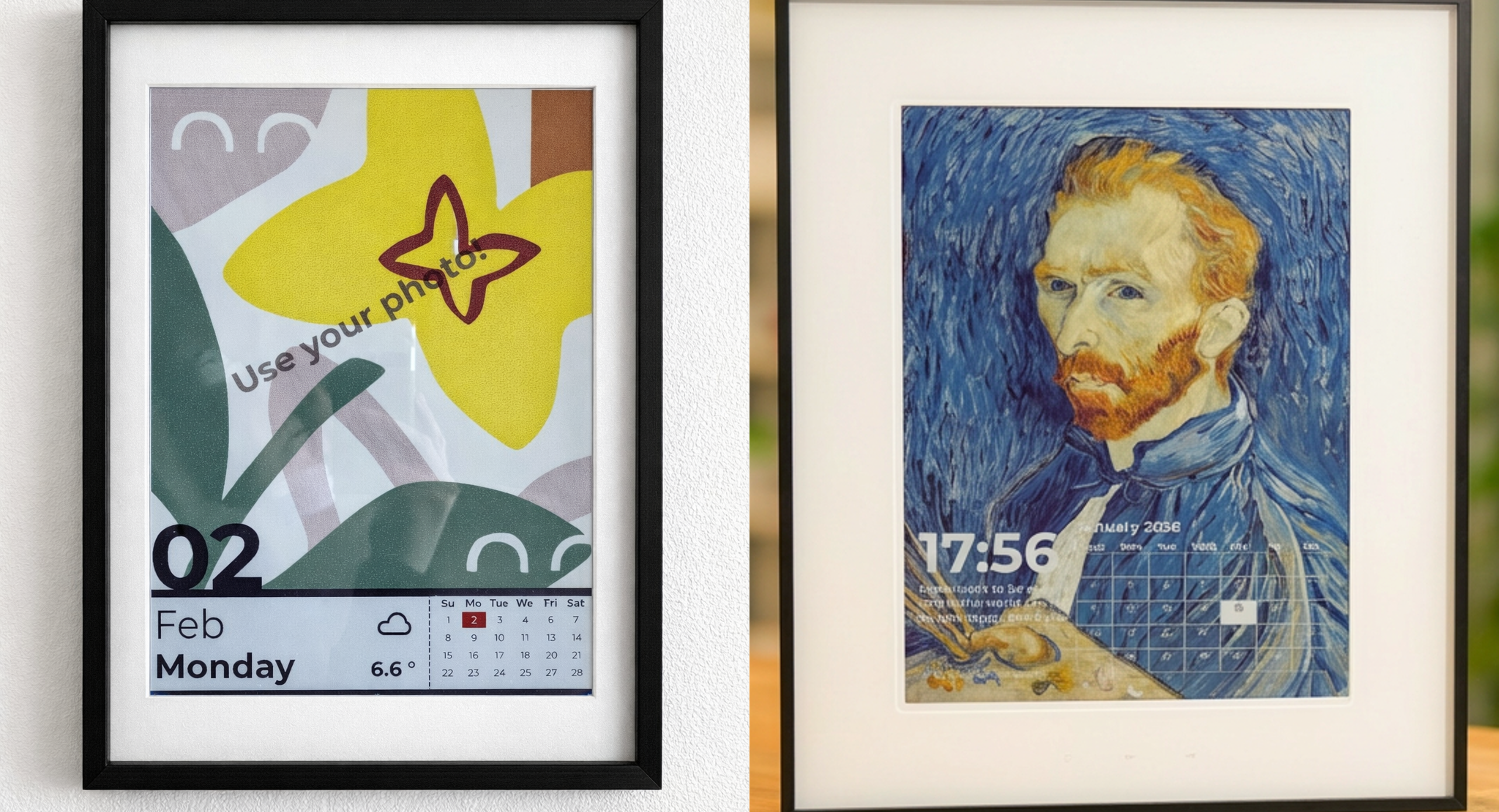

Community Templates
Section titled “Community Templates”
XIAO ePaper DIY Kit EE02
Section titled “XIAO ePaper DIY Kit EE02”| XIAO ePaper DIY Kit EE02 |
|---|
 |
Introduction
Section titled “Introduction”The EE02 is a high-performance ESP32-S3 driver board optimized for 13.3-inch E-ink displays. It features integrated Wi-Fi and Bluetooth for seamless wireless connectivity in IoT applications. The EE02 simplifies large-format display control and fully supports the SenseCraft HMI platform for effortless no-code content management.
Features
Section titled “Features”- Powerful Controller: Built around the ESP32-S3, offering robust processing power and wireless capabilities.
- Dedicated for Large Screens: Specifically optimized to drive 13.3-inch E-ink displays with high stability and clarity.
- Wireless Connectivity: Supports Wi-Fi and Bluetooth 5.0 (LE), enabling remote data updates and cloud integration.
- Low Power Consumption: Designed for energy efficiency, suitable for battery-powered applications.
- Versatile Interfaces: Includes Type-C for power/programming and standard connectors for E-ink screens.
XIAO ePaper DIY Kit EE03
Section titled “XIAO ePaper DIY Kit EE03”| XIAO ePaper DIY Kit EE03 |
|---|
 |
Introduction
Section titled “Introduction”Powered by XIAO ESP32-S3 Plus, the ePaper driver board EE03 supports 10.3-inch high-refresh ePaper display. It features a JST 2.0 mm battery connector with power switch, built-in charging IC, and comes with one reset and three user buttons. It is well suited for low-power ePaper projects such as digital photo frames and information boards.
Features
Section titled “Features”- Built in XIAO ESP32-S3 Plus: Works immediately when connected to a compatible ePaper display.
- Dedicated 10.3” Monochrome ePaper Display Support: Specifically designed for 10.3” high-speed refresh ePaper display, ensuring quick setup and stable operation.
- High-Speed Refresh Enabled: Integrated T-CON timing control ensures precise high-speed driving, while the onboard SHT40 provides real-time temperature sensing for waveform compensation.
- BAT Connector with Switch: Provides simple battery connection and integrates a switch, enabling efficient power management and energy savings.
- User-Friendly Buttons: Features 1 reset button and 3 user-programmable buttons, providing flexibility for project acceleration and customizable functions.
XIAO ePaper DIY Kit EE04
Section titled “XIAO ePaper DIY Kit EE04”| XIAO ePaper DIY Kit EE04 |
|---|
 |
Introduction
Section titled “Introduction”Powered by XIAO ESP32-S3 Plus, the display board EE04 supports both 24-pin and 50-pin ePaper displays. It features a JST 2.0 mm battery connector with power switch, built-in charging IC, and comes with one reset and three user buttons. It is well suited for low-power ePaper projects such as digital signage, electronic labels, and portable information boards.
Features
Section titled “Features”- Powered by XIAO ESP32-S3 Plus: Works immediately when connected to a compatible ePaper display.
- Versatile Display Support: Compatible with a wide range of ePaper screens, supporting both 24-Pin and 50-Pin interfaces with easy switching via jumper caps.
- BAT Connector with Switch: Provides simple battery connection and integrates a switch, enabling efficient power management and energy savings.
- User-Friendly Buttons: Includes 1 reset button and 3 user-programmable buttons, offering flexibility for project acceleration and customizable functions.
Supported ePaper Panels
Section titled “Supported ePaper Panels”| Size | Color Mode | Resolution |
|---|---|---|
| 1.54” | Monochrome | 200×200 |
| 2.13” | Monochrome / Color | 250×122 |
| 2.9” | Monochrome / Color | 296×128 |
| 4.2” | Monochrome | 400×300 |
| 4.26” | Monochrome | 800×480 |
| 5.83” | Monochrome | 648×480 |
| 7.3” | Color (Spectra 6) | 800×480 |
| 7.5” | Monochrome | 800×480 |

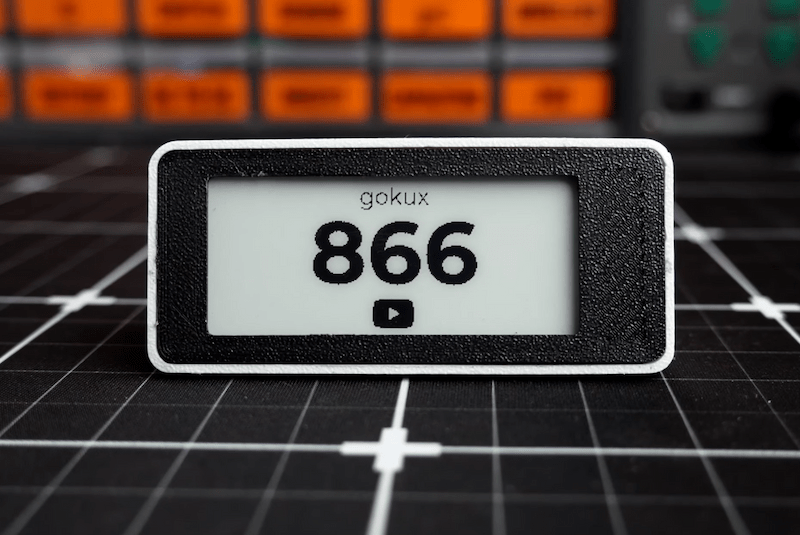

Community Templates
Section titled “Community Templates”
XIAO ePaper DIY Kit EE05
Section titled “XIAO ePaper DIY Kit EE05”| XIAO ePaper DIY Kit EE05 |
|---|
 |
Introduction
Section titled “Introduction”Powered by the XIAO ESP32-S3 Plus, the display board EE05 supports a wide range of 24-pin ePaper displays and works with SenseCraft HMI for no-code UI design and deployment. With extension IO and a battery connector power switch, it is ideal for low-power smart display applications.
Features
Section titled “Features”- Powered by XIAO ESP32-S3 Plus: Works immediately when connected to a compatible ePaper display.
- Versatile Display Support: Compatible with a wide range of 24-pin ePaper displays for various project requirements.
- Extension IO Port: Enables connection of additional sensors, such as temperature and humidity sensors, for enhanced functionality.
- BAT Connector with Switch: Provides simple battery connection and integrates a switch, enabling efficient power management and energy savings.
- SenseCraft HMI Support: Use SenseCraft HMI to design, configure, and deploy dashboards without writing code.
Supported ePaper Panels
Section titled “Supported ePaper Panels”| Size | Color Mode | Resolution |
|---|---|---|
| 1.54” | Monochrome | 200×200 |
| 2.13” | Monochrome / Color | 250×122 |
| 2.9” | Monochrome / Color | 296×128 |
| 4.2” | Monochrome | 400×300 |
| 4.26” | Monochrome | 800×480 |
| 5.83” | Monochrome | 648×480 |
| 7.5” | Monochrome | 800×480 |
TRMNL 7.5” (OG) DIY Kit
Section titled “TRMNL 7.5” (OG) DIY Kit”
Introduction
Section titled “Introduction”The TRMNL 7.5” (OG) DIY Kit is an open-hardware ePaper kit with a 7.5-inch monochrome display. SenseCraft HMI can be installed on this kit as a no-code alternative to the default TRMNL firmware.
Features
Section titled “Features”- TRMNL BYOD Compatibility: Official kit for building TRMNL 7.5” OG device with 375+ plugins and 8 no-code layouts (e.g., Calendar, Shopify, GitHub)
- 7.5” E-Ink Display: 800×480 monochrome display with partial refresh (0.34s) and full refresh (3.5s)
- Energy-Efficient Design: 2000mAh battery provides up to 3 months of operation in deep sleep mode (6-hour refresh interval)
- Dual Ecosystem Support: Compatible with Home Assistant (via ESPHome) and Arduino IDE for custom development
- Open Source Enclosures: Available on Printables and Thingiverse for easy customization
